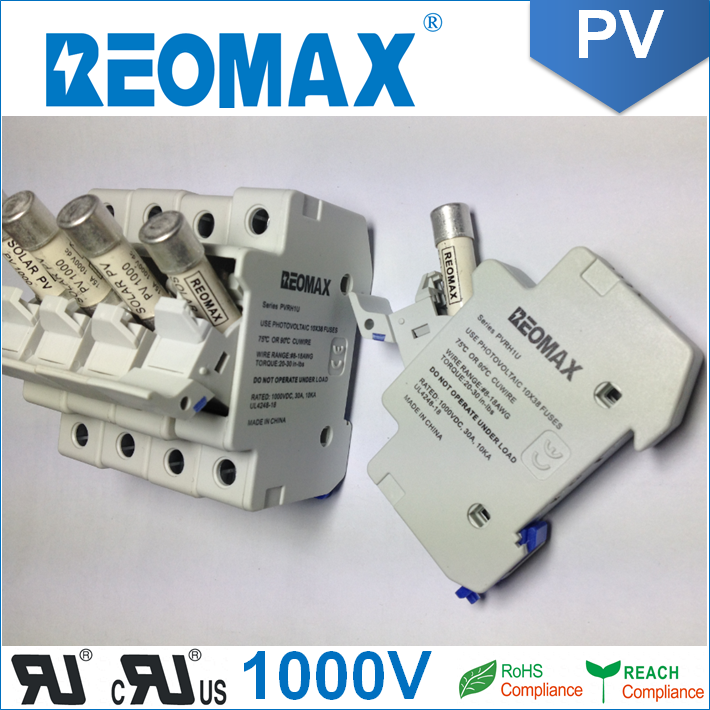

.png "15A 1000Vdc REOMAX光伏熔斷器10X38mm PV1000")
一、產品特點
1.光伏匯流箱專用熔斷器 1000V
2.產品標準尺寸10 X 38MM
3.特種工程材料管、鍍銀銅帽
4.元件符合RoHS與無鉛無鹵要求
5.UL認證號E365873
二、規格型號
|
目錄編號
Catalog
No. |
額定電流
Rated
Current |
額定電壓
Rated
Voltage |
分斷能力
Breaking
Capacity |
焦耳積分
I2t (A2S) |
功率損耗
Watts Loss(W) |
||
|
Pre-Arcing |
Total at 1000V |
0.8In |
1.0In |
||||
|
PV1000.1A |
1A |
1000V (DC) |
10kA, Time Constant <1ms |
0.15 |
0.4 |
0.8 |
1.5 |
|
PV1000.2A |
2A |
1.3 |
3.4 |
0.7 |
1.1 |
||
|
PV1000.3A |
3A |
4 |
12 |
0.8 |
1.3 |
||
|
PV1000.3.5A |
3.5A |
6.5 |
20 |
0.9 |
1.4 |
||
|
PV1000.4A |
4A |
10 |
28 |
1.1 |
1.4 |
||
|
PV1000.5A |
5A |
19 |
50 |
1.1 |
1.4 |
||
|
PV1000.6A |
6A |
32 |
93 |
1.2 |
1.8 |
||
|
PV1000.8A |
8A |
3.2 |
33 |
1.2 |
2.2 |
||
|
PV1000.10A |
10A |
30 |
70 |
1.3 |
2.3 |
||
|
PV1000.12A |
12A |
50 |
200 |
1.5 |
2.8 |
||
|
PV1000.15A |
15A |
60 |
230 |
1.8 |
3 |
||
三、規格說明
