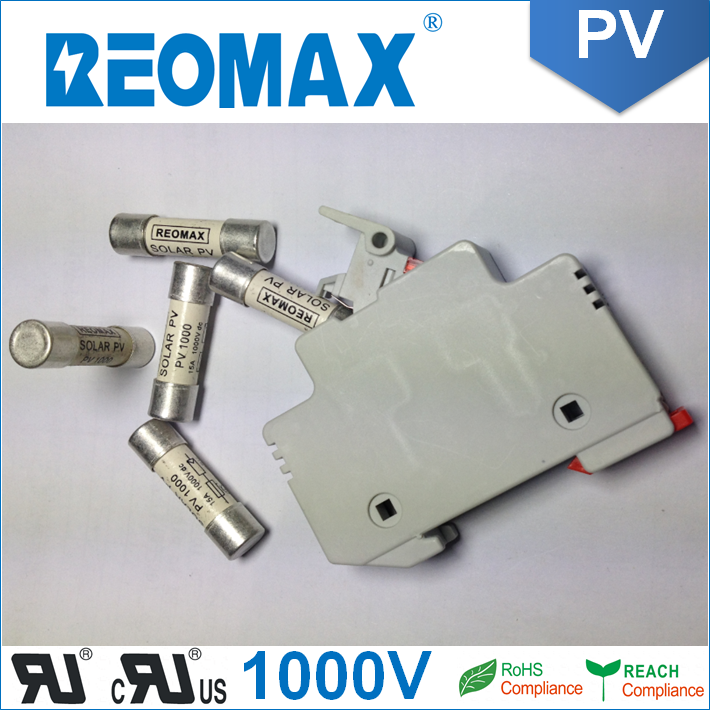

REOMAX PV FUSE PV1000V 15A 1000VDC(10X38mm)

Detailed

The REOMAX PV1000 Solar Protection Fuse links series has been specifically designed for the protection of photovoltaic (PV) systems, this family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the REOMAX PV1000 series is to safely interrupt faulted circuits up to this demanding voltage level.

REOMAX offers more than 11 ampere ratings to match specific requirements in a variety of applications.

I. Features

1 Dedicated fuse for PV combiner box 1000V

2 Product standard size 10 X 38MM

3 Special engineering materials pipes, silver-plated copper cap

4 Components RoHS compliant and halogen-free requirements

5 UL certification number E365873，Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum

6 Rated current: 1-15 A ratings available;

7 Breaking capacity: 10,000A;

8 Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.

9 In the measurement of DC resistance to cold ambient temperature <25 ??℃, 10% of rated current

II. Specification

Catalog No.	Rated Current	Rated Voltage	Breaking Capacity	I2t (A2S)		Watts Loss(W)
Catalog No.	Rated Current	Rated Voltage	Breaking Capacity	Pre-Arcing	Total at 1000V	0.8In	1.0In
PV1000.1A	1A	1000V (DC)	10kA, Time Constant <1ms	0.15	0.4	0.8	1.5
PV1000.2A	2A			1.3	3.4	0.7	1.1
PV1000.3A	3A			4	12	0.8	1.3
PV1000.3.5A	3.5A			6.5	20	0.9	1.4
PV1000.4A	4A			10	28	1.1	1.4
PV1000.5A	5A			19	50	1.1	1.4
PV1000.6A	6A			32	93	1.2	1.8
PV1000.8A	8A			3.2	33	1.2	2.2
PV1000.10A	10A			30	70	1.3	2.3
PV1000.12A	12A			50	200	1.5	2.8
PV1000.15A	15A			60	230	1.8	3
