Position：Home > Product > Surface Mount Fuses

Surface Mount Fuses

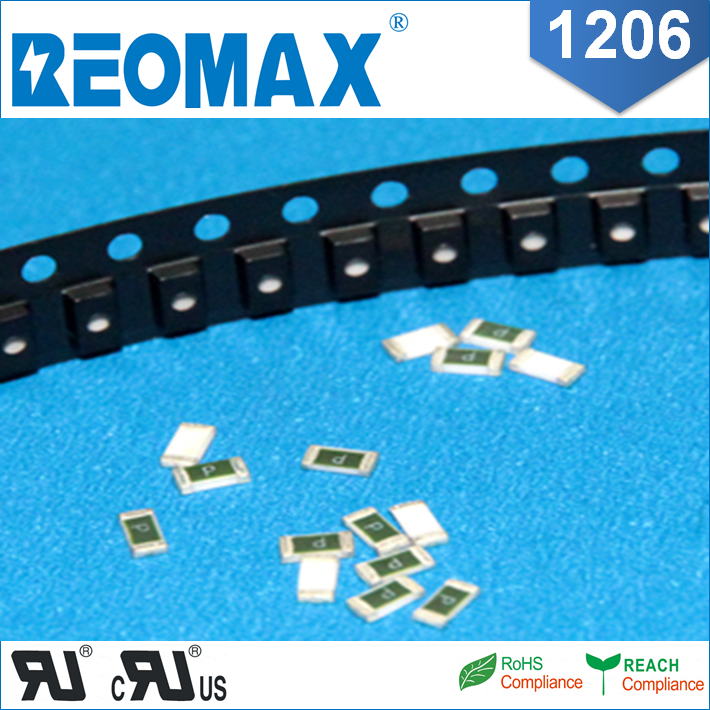

1206 Slow Blow SMD Fuses

Detailed

Features		Applications
● -50℃~125℃ operating temperature		● Mobile phones- Battery and port protection
● Standard 3.2mm x 1.6mm x 0.65mm(1206mils) footprint		● PC motherboards – Plug and Play protection
● Surface mount packaging for automated assembly		● PDAs/Digital cameras
● Excellent environmental integrity		● USB port protection
● Agency recognition: UL approved		● HDMI source protection
● RoHS compliant & Halogen-free		● Game console port protection

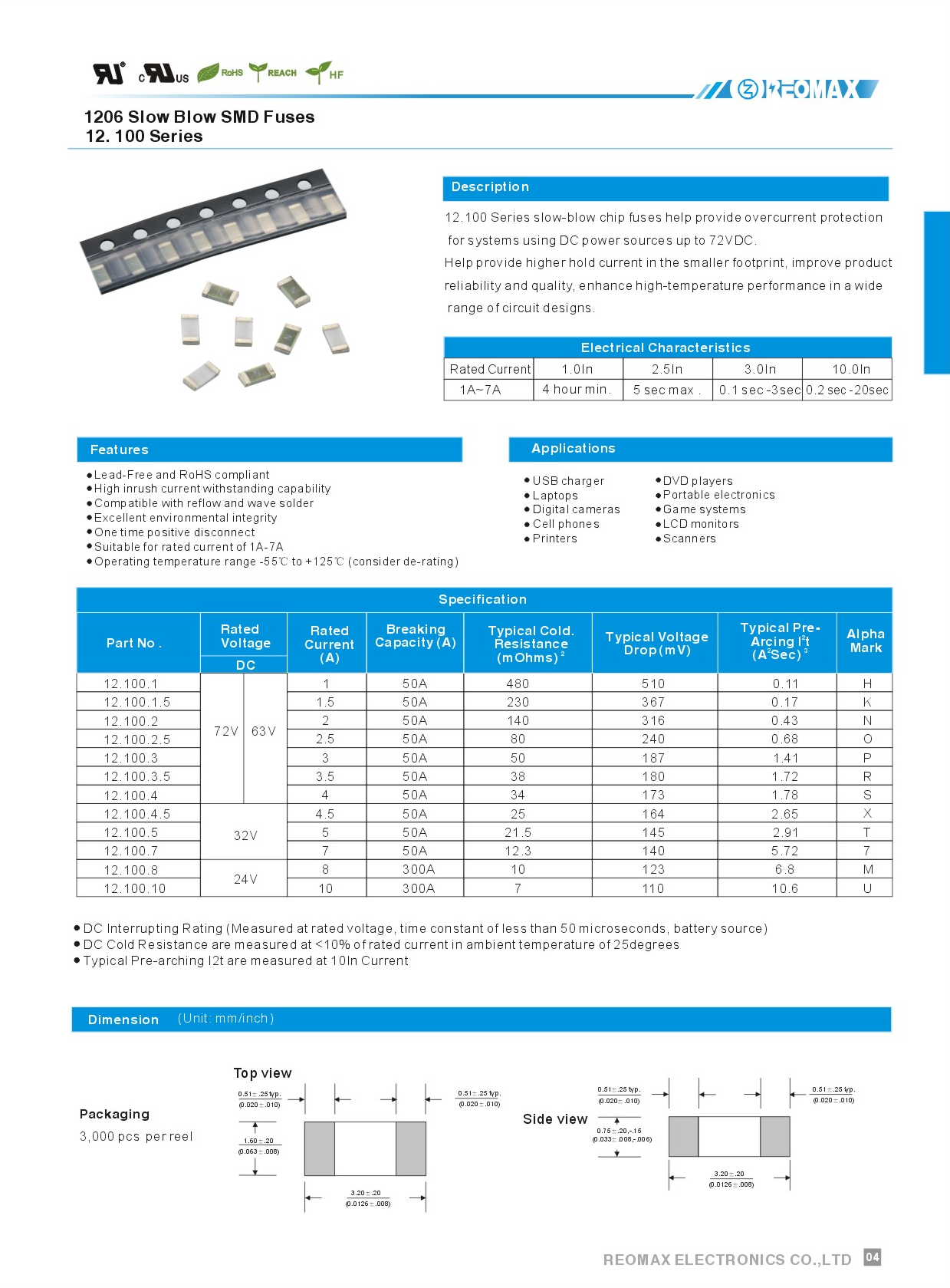

Data Sheet		Agency Approvals

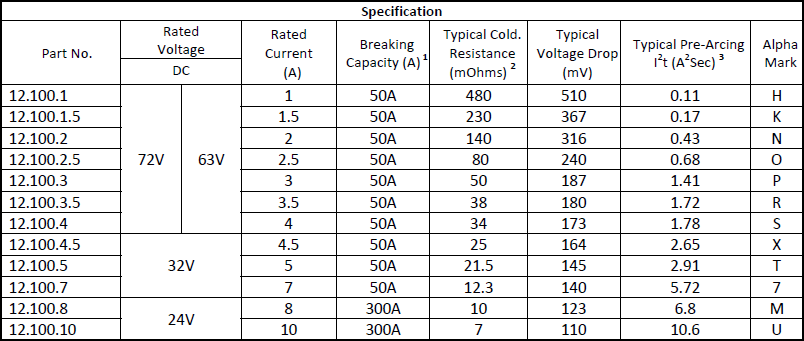

Electrical Characteristics

  【Printing】  【Close】

Previous：FMS 350V Fast-Acting Radial Lead Micro Fuse  Next：0603 Slow Blow SMD Fuses
