Position：Home > Product > Surface Mount Fuses
Surface Mount Fuses

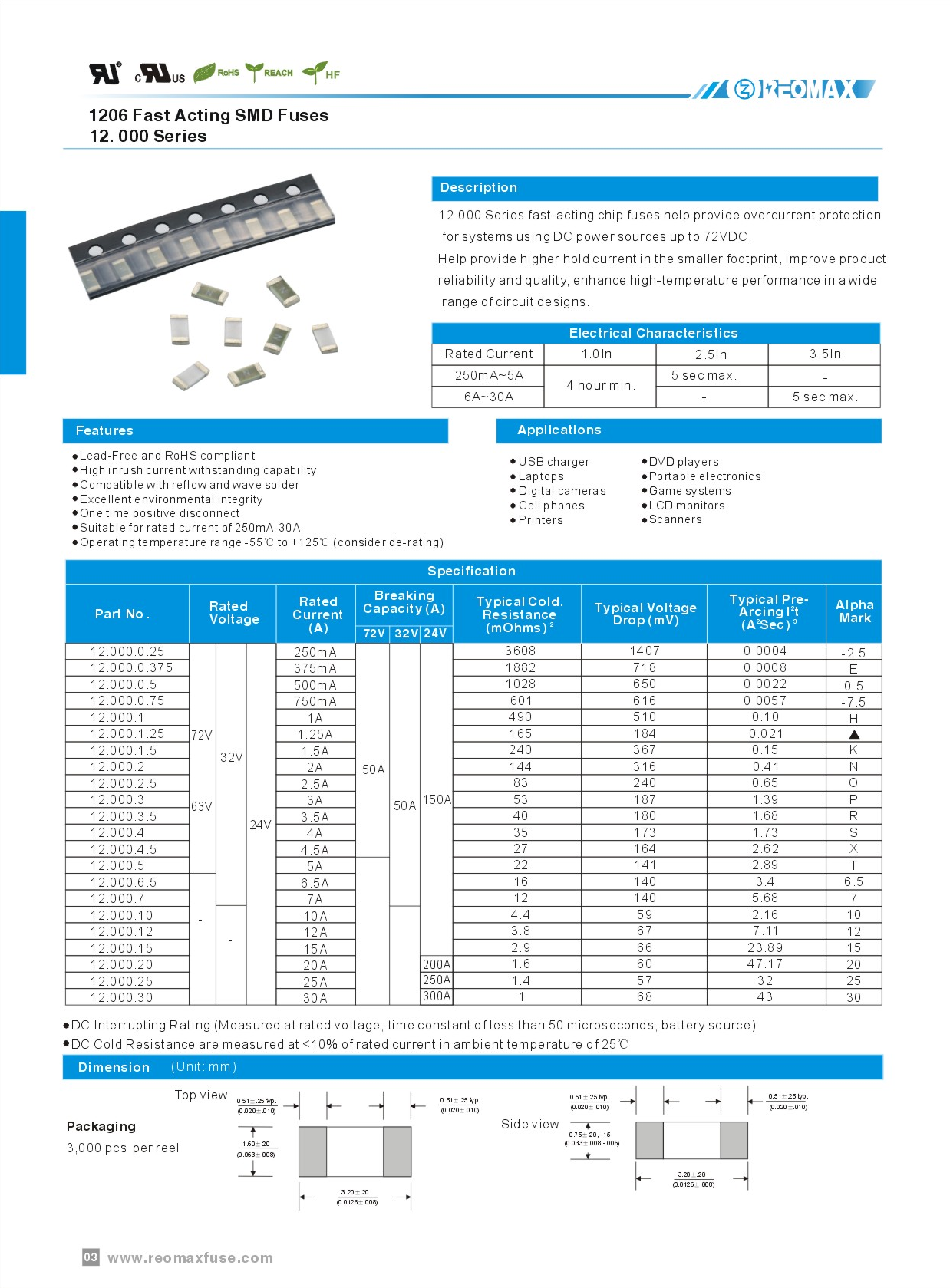

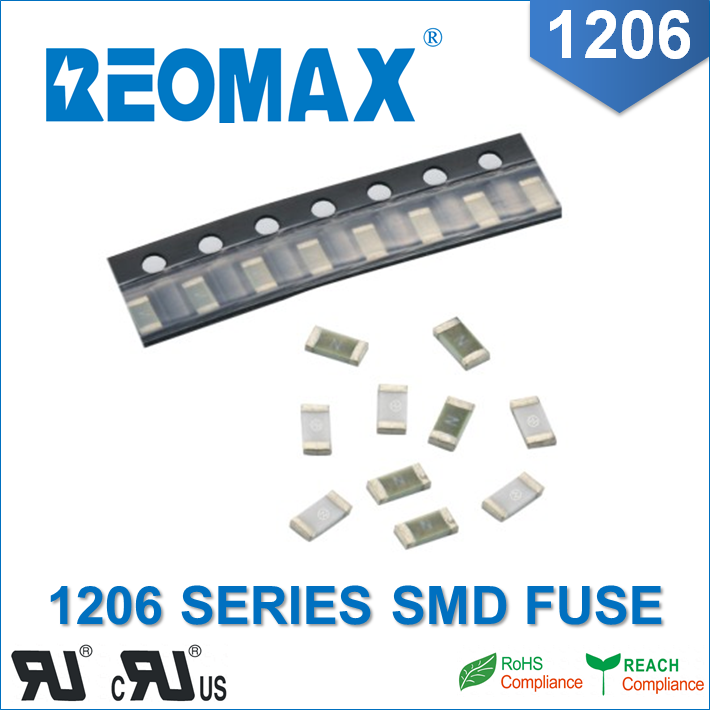

1206 Fast Acting SMD Fuses

Detailed

Features		Applications
● -50℃~125℃ operating temperature		● Mobile phones- Battery and port protection
● Standard 3.2mm x 1.6mm x 0.65mm(1206mils) footprint		● PC motherboards – Plug and Play protection
● Surface mount packaging for automated assembly		● PDAs/Digital cameras
● Excellent environmental integrity		● USB port protection
● Agency recognition: UL approved		● HDMI source protection
● RoHS compliant & Halogen-free		● Game console port protection

Data Sheet		Agency Approvals

Electrical Characteristics

Specification
Part No.	Rated Voltage DC			Rated Current (A)	Breaking Capacity 1			Typical Cold. Resistance (mOhms) 2	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec) ³(DC)	Aplha Marking
Part No.	Rated Voltage DC			Rated Current (A)	72V	32V	24V	Typical Cold. Resistance (mOhms) 2	Typical Voltage Drop (mV)	Typical Pre-Arcing I²t (A²Sec) ³(DC)	Aplha Marking
12.000.0.25	72V	32V	24V	250mA	50A	50A	150A	3608	1407	0.0004	.25
12.000.0.375				375mA				1882	718	0.0008	●
12.000.0.5				500mA				1028	650	0.0022	0.5
12.000.0.75				750mA				601	616	0.0057	.75
12.000.1				1A				490	510	0.10	H
12.000.1.25				1.25A				165	184	0.021	▲
12.000.1.5				1.5A				240	367	0.15	K
12.000.2				2A				144	316	0.41	N
12.000.2.5				2.5A				83	240	0.65	O
12.000.3				3A				53	187	1.39	P
12.000.3.5				3.5A				40	180	1.68	R
12.000.4				4A				35	173	1.73	S
12.000.4.5				4.5A				27	164	2.62	X
12.000.5				5A				22	141	2.89	T
12.000.6.5	-			6.5A	-			16	140	3.4	6.5
12.000.7				7A				12	140	5.68	7
12.000.10		-		10A		-		4.4	59	2.16	10
12.000.12				12A				3.8	67	7.11	12
12.000.15				15A				2.9	66	23.89	15
12.000.20				20A			200A	1.6	60	47.17	20
12.000.25				25A			250A	1.4	57	32	25
12.000.30				30A			300A	1	68	43	30
