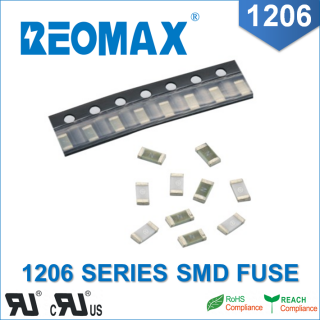

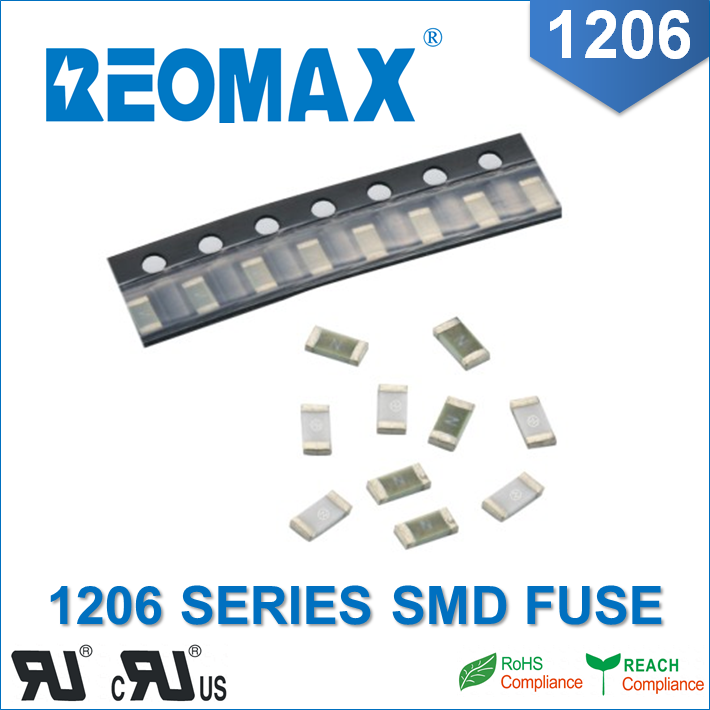

.png "1206快斷貼片保險絲125V")
| Features | Applications | |
| ● -50℃~125℃ operating temperature | ● Mobile phones- Battery and port protection | |
| ● Standard 3.2mm x 1.6mm x 0.65mm(1206mils) footprint | ● PC motherboards – Plug and Play protection | |
| ● Surface mount packaging for automated assembly | ● PDAs/Digital cameras | |
| ● Excellent environmental integrity | ● USB port protection | |
| ● Agency recognition: UL approved | ● HDMI source protection | |
| ● RoHS compliant & Halogen-free | ● Game console port protection |
| Data Sheet | Agency Approvals | |
 |
  |

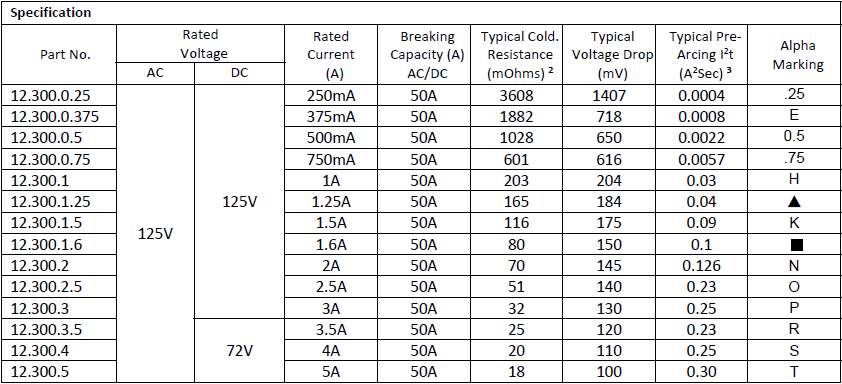

| Electrical Characteristics |
|
|
