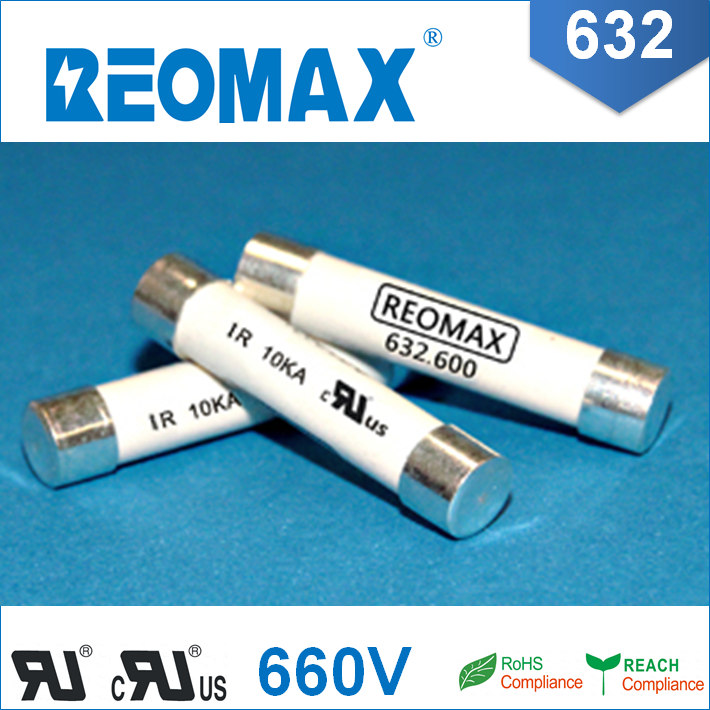

一、產品特點
1.快斷式660V高壓保險管
2.產品標準尺寸6X32MM
3.特種工程材料管、鍍銀銅帽
4.操作溫度范圍：-50℃~125℃
5.具有抵抗瞬間浪涌承載能力
6.元件符合RoHS與無鉛無鹵要求
7.UL認證編號E365879
二、規格參數
|
Specification |
||||||||
|
Part No. |
Rated |
Rated Current |
Breaking Capacity |
Typical Cold. |
Typical |
Typical Pre‐Arcing |
||
|
AC |
DC |
AC |
DC |
|||||
|
632.600.0.5 |
660V |
660V |
500mA |
1000A |
1000A |
1600 |
1000 |
0.03 |
|
632.600.4 |
4A |
36 |
260 |
20 |
||||
|
632.600.5 |
5A |
30 |
230 |
30 |
||||
|
632.600.10 |
10A |
18 |
167 |
21 |
||||
|
632.600.20 |
20A |
4.6 |
110 |
400 |
||||
|
632.600.25 |
25A |
2.8 |
100 |
4000 |
||||
|
632.600.30 |
30A |
2.4 |
110 |
1000 |
||||
