Radial-Leaded Devices

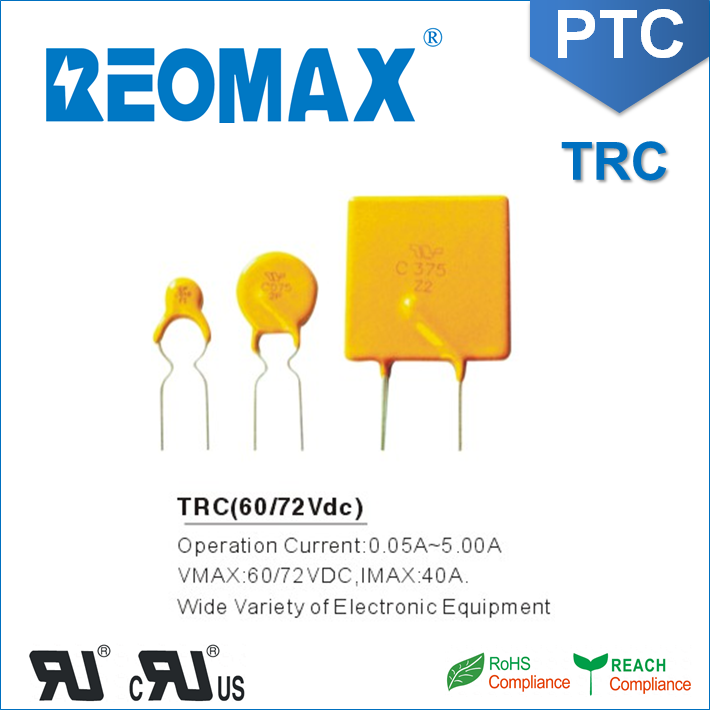

TRC (60V/72V) series

Detailed

Features		Applications
● Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements		Almost anywhere there is a low voltage power supply, up to 60V and a load to be protected, including:
● Radial Leaded Devices		● Personal computer
● Bulk Package, or tape and reel available on most models		● Toys
● RoHS Compliant		● Industrial controls
● Agency recognition: UL on approval		● Personal care product



Data Sheet		Agency Approvals

Electrical Characteristics

P/N 保持電流 跳脫電流 最大電壓 最大電流 最大動作時間 消耗功率 電阻范圍(Ω) IH,(A) IT,(A) Vmax,(V) Imax,(A) (A) (Sec.) PDtyp(W) Rmin Rmax R1max TRC005  0.05 0.15 60 40 0.25 5 0.22 7.3 11.1 25 TRC010  0.1 0.2 60 40 0.5 4 0.38 2.3 8.1 12 TRC017  0.17 0.34 60/72  40 0.85 3 0.48 2 5.21 8 TRC020  0.2 0.4 60/72  40 1 2.2 0.4 1.3 2.84 4.5 TRC025  0.25 0.5 60/72  40 1.25 2.5 0.45 0.9 1.95 3 TRC030  0.3 0.6 60/72  40 1.5 3 0.5 0.7 1.36 2.1 TRC040  0.4 0.8 60/72  40 2 3.8 0.55 0.48 0.95 1.4 TRC050  0.5 1 60/72  40 2.5 4 0.75 0.38 0.78 1.2 TRC065  0.65 1.3 60/72  40 3.25 5.3 0.9 0.24 0.54 0.74 TRC075  0.75 1.5 60/72  40 3.75 6.3 0.9 0.23 0.45 0.62 TRC090  0.9 1.8 60/72  40 4.5 7.2 1 0.14 0.31 0.49 TRC110  1.1 2.2 60/72  40 5.5 8.2 1.5 0.15 0.25 0.4 TRC135  1.35 2.7 60/72  40 6.75 9.6 1.7 0.12 0.19 0.32 TRC160  1.6 3.2 60/72  40 8 11.4 1.9 0.09 0.14 0.24 TRC185  1.85 3.7 60/72  40 9.25 12.6 2.1 0.08 0.12 0.21 TRC250  2.5 5 60/72  40 12.5 15.6 2.5 0.05 0.08 0.15 TRC300  3 6 60/72  40 15 19.8 2.8 0.04 0.06 0.12 TRC375  3.75 7.5 60/72  40 18.75 24 3.2 0.03 0.05 0.1 TRC500  5 10 60/72  40 25 24 3.2 0.02 0.05 0.1
